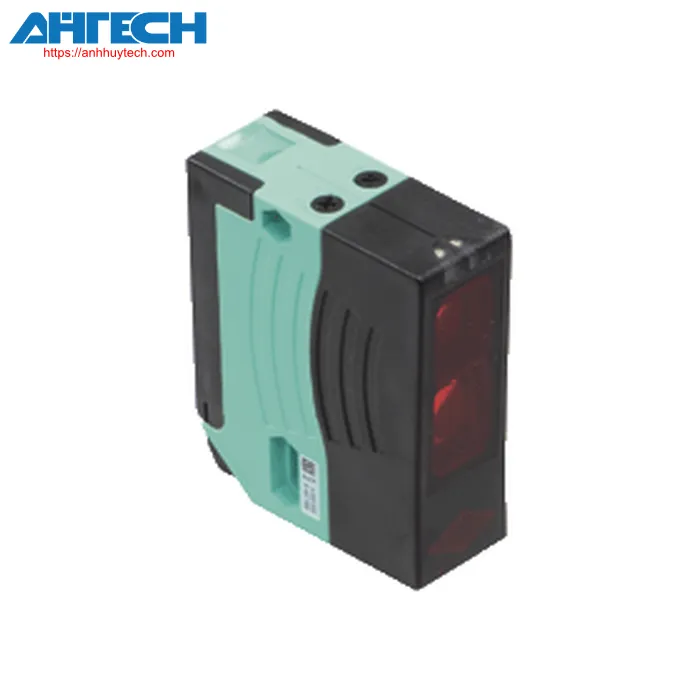

Photoelectric Sensor RL28-8-H-2000-IR-Z/49/116

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of RL28-8-H-2000-IR-Z/49/116

Classifications

Item Specification
Background elimination sensor

Overall specifications
Detection distance		20 ... 2000 mm
Minimum detection range		20 ... 200 mm
Maximum detection range		20 ... 2000 mm
Background elimination		max. + 10 % above the upper limit of the detection range
illumination source		IRED
Illumination type		modulated infrared light at 880 nm
Black-white contrast (6 %/90 %)		< 40 %
Size of the illumination spot		approximately 70 mm at a range of 2000 mm
angle of opening		transmitter 2° receiver 2nd
Ambient light threshold		50000 Lux
Parameters related to functional safety
MTTF_d		720 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green
operation indicator		2 LEDs yellow ON: object detected within the scanning area OFF: item beyond the detection range
control components		detection range adjuster , Light-on/dark-on toggle switch
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		10 %
No-load input current		= 40 mA
Output
Type of switch		light/dark mode, switchable (selectable, light/dark switching activates only when the receiver is set to 'dark on')
Output signal		1 NPN, 1 PNP synchronized switching, protected against short circuits, reverse polarity, open collector outputs
Switching voltage level		max. 30 V DC
Switching capacity		max. 200 mA
commutation frequency		250 Hz
reaction time		2 ms
Timing feature		ON delay (GAN), OFF delay (GAB), one shot (IAB), ON delay-one shot (GAN-IAB), ON delay-OFF delay (GAN-GAB), configurable adjustment range 0.02 s ... 1 s
Compliance
Product specification		EN 60947-5-2
Certifications and approvals
EAC compliance		TR CU 020/2011
Ingress protection rating		II, rated voltage = 250 V AC with pollution degree 1-2 according to IEC 60664-1 Caution! The protection class 2 applies only when the terminal chamber is secured
UL certification		E87056, cULus Certified, Class 2 power supply, type rating 1
Environmental conditions
Ambient temperature		-40 ... 60 °C (-40 ... 140 °F)
Ambient storage temperature		-40 ... 60 °C (-40 ... 140 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		terminal chamber featuring 8 spring-loaded terminals for wire cross-section of 0.5 ... 1.5 mm², insulation removal 7.5 ... 8.5 mm, M16 x 1.5 cable gland
Material
	Housing	Plastic ABS
	optical surface	synthetic panel
Mass		112 g
Measurements
	Height	88 mm
	Width	25.8 mm
	Depth	65.5 mm
