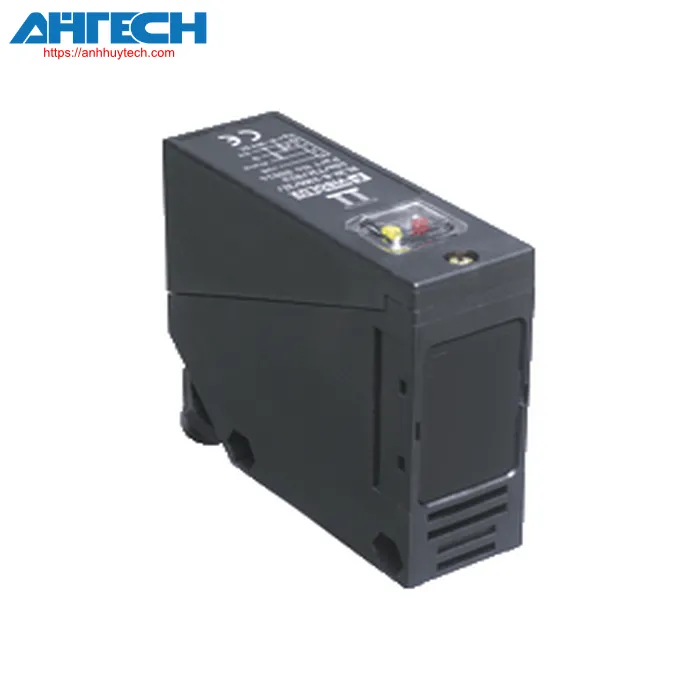

Photoelectric Sensor Pepperl+Fuchs RL39-8-800/32/40a/73c/82a
Pepperl+Fuchs Categories
Photoelectric Sensor RL39-8-800/32/40a/73c/82a
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of RL39-8-800/32/40a/73c/82a
| Overall specifications | ||
|---|---|---|
| Detection distance | 0 ... 800 mm | |
| modification range | 150 ... 800 mm | |
| Reference point | typical white 200 mm x 200 mm | |
| illumination source | IRED | |
| Illumination type | modulated infrared light | |
| Ambient light threshold | IEC / EN 60947-5-2 , 10000 Lux | |
| Parameters related to functional safety | ||
| MTTFd | 916 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Indicators/operation controls | ||
| operation indicator | Yellow indicator LED: status of switching LED red: pre-failure alert |
|
| control components | Detection distance calibrator, light-on/dark-on toggle switch | |
| Electrical parameters | ||
| Operational voltage | 10 ... 30 V DC | |
| Ripple | 10 % | |
| No-load input current | = 20 mA | |
| Delay time prior to availability | = 300 ms | |
| Output | ||
| Stability fault indication output | 1 PNP, triggered when there is a reduction in functioning reserve | |
| Type of switch | light/dark on | |
| Output signal | 1 PNP output, safeguarded against short circuits, protected against reverse polarity, open collector | |
| Switching voltage level | max. 30 V DC | |
| Switching capacity | max. 200 mA, resistive load | |
| voltage loss | = 3 V | |
| commutation frequency | = 300 Hz | |
| reaction time | = 1.5 ms | |
| Compliance | ||
| Product specification | EN 60947-5-2 | |
| Certifications and approvals | ||
| Certifications | CE | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 55 °C (-13 ... 131 °F) | |
| Ambient storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP54 | |
| Linkage | 4-pin, M12 x 1 connector | |
| Material | ||
| Housing | PBT | |
| optical surface | PMMA | |
| Mass | approx. 100 g | |
| Measurements | ||
| Height | 64 mm | |
| Width | 25 mm | |
| Depth | 75 mm | |
| Overview information | ||
| Contents of shipment | installation assistance | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ECLASS 11.0 | 27270903 |
| ECLASS 10.0.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 5.1 | 27270903 |
| ETIM 9.0 | EC001821 |
| ETIM 8.0 | EC001821 |
| ETIM 7.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 5.0 | EC001821 |
| UNSPSC 12.1 | 39121528 |
Download Specification for RL39-8-800/32/40a/73c/82a
Download PDF
