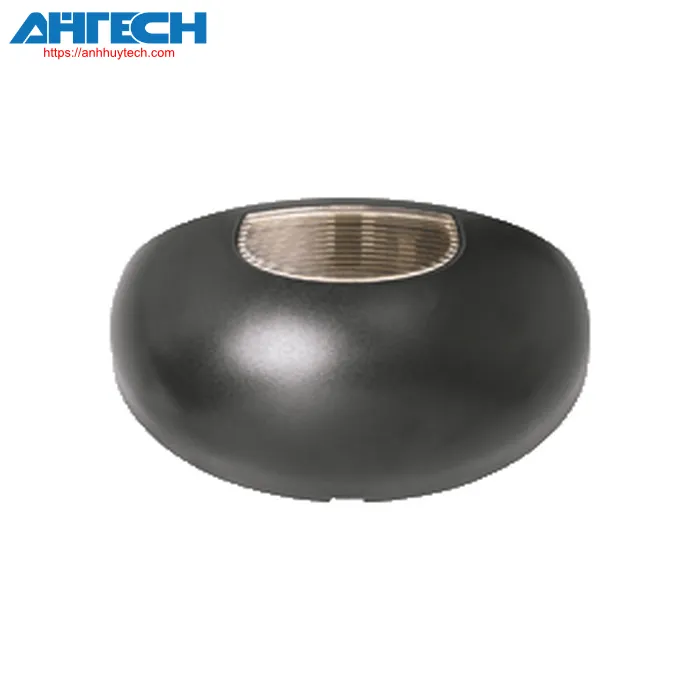

Photoelectric Sensor Pepperl+Fuchs RMS-G-RC

Pepperl+Fuchs Categories

Photoelectric Sensor RMS-G-RC

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of RMS-G-RC

Classifications

Item Specification
Premium industrial door opener capable of distinguishing between individuals and vehicles, can be operated remotely, detection range of 7 m x 6 m, maximum installation height of 7 m, black casing, 2 relay contact outputs, and cable connection

Overall specifications
detection range		7000 x 6000 mm (D x W) at a mounting height of 5000 mm and an inclination angle of 30° 8000 x 5000 mm (DxW) at a mounting height of 7000 mm and an inclination angle of 30°
functioning principle		Microwave component
Detection rate		min. 0.1 m/s , max. ... 5 m/s (18 km/h)
Marking		CE, FCC
adjustment angle		0 ... 40 ° in 5 ° steps
Operating frequency range		24.15 ... 24.25 GHz K-Band
Operation mode		Radar-based motion detector
Transmitter emitted power (EIRP)		< 13 dBm
Parameters related to functional safety
MTTF_d		620 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
operation indicator		LED red/green indicator
control components		Programming push-button for selecting operational modes: direction detection, cross-traffic suppression, vehicle detection, switching type, relay hold time
control components		Programming through 2 keys, alternative using remote control (Accessories sold separately)
Electrical parameters
Operational voltage		12 ... 36 V DC , 12 ... 28 V AC
No-load input current		= 50 mA at 24 V DC
Energy usage		= 1 W
Output
Type of switch		NO/NC
Output signal		2 output relays
Switching voltage level		max. 48 V AC / 48 V DC
Switching capacity		max. 0.5 A AC / 1 A DC
Conversion power		max. 24 W / 60 VA
delay in a de-energized state		0.2 ... 5 s customizable
Certifications and approvals
CE compliance		2014/53/EU This device can be used in all countries within the EU including the United Kingdom. In other countries, all applicable national regulations must be observed.
EAC compliance		TR CU 020/2011
FCC certification		FCC Regulations part 15 / This device is permissible for use in the USA RSS-310 compliant with Industry Canada / This device is authorized for use in Canada
Environmental conditions
Functional temperature range		-30 ... 60 °C (-22 ... 140 °F)
Ambient storage temperature		-30 ... 60 °C (-22 ... 140 °F)
Comparative moisture content		max. 90% non-condensing
Mechanical characteristics
mounting height		max. 7000 mm
Protection等级		IP54
Linkage		plug-in screw terminals, 4-pin and 2-pin, 8 m connection cable included in the shipment
Material
	Housing	ABS, dark gray
Mass		120 g
Measurements		123 mm x 65 mm x 57 mm
	Height	65 mm
	Width	123 mm
	Depth	57 mm
Suitable series
Series		RMS
