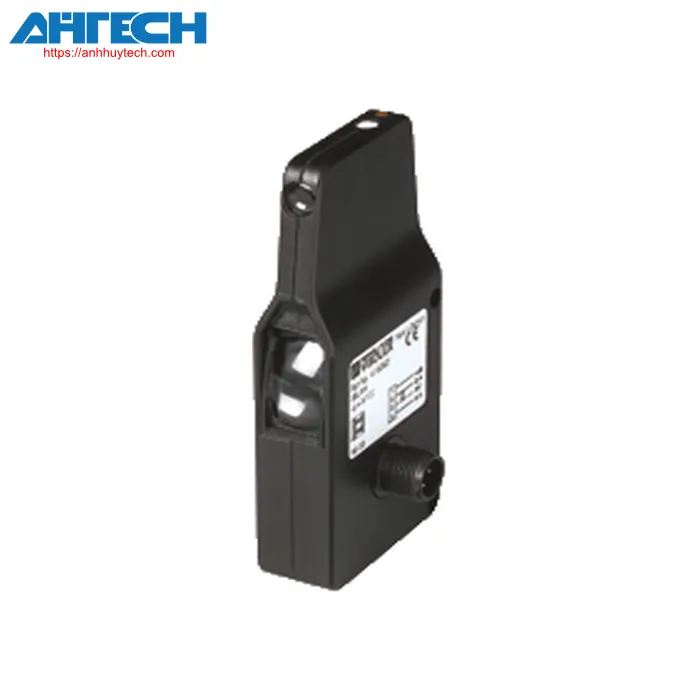

Photoelectric Sensor SBL-8-H-900-IR/59/65b/73/120

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of SBL-8-H-900-IR/59/65b/73/120

Classifications

Item Specification
Congested track scanner with background suppression sensor, 900 mm adjustable detection range, infrared illumination, dark on functionality, 2 PNP outputs, M12 connector

Overall specifications
Detection distance		40 ... 900 mm
Minimum detection range		40 ... 340 mm
Maximum detection range		40 ... 900 mm
modification range		340 ... 900 mm
Reference point		typical white 200 mm x 200 mm
illumination source		IRED
Illumination type		modulated infrared light at 880 nm
Black-white contrast (6 %/90 %)		< 10 %
Size of the illumination spot		approximately 60 mm at a detection distance of 900 mm
Ambient light threshold		continuous light 30000 Lux , Fluorescent lamp 5000 Lux
Parameters related to functional safety
MTTF_d		1100 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
operation indicator		Yellow indicator LED: activates when an object is sensed
control components		detection range adjuster
Electrical parameters
Operational voltage		24 VDC -20% +10%
Ripple		max. 10 %
No-load input current		max. 20 mA
Output
Type of switch		dark-on
Output signal		2 PNP, supplementary, short-circuit protected, open collectors
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA
commutation frequency		100 Hz
reaction time		5 ms
Compliance
Product specification		EN 60947-5-2
Adherence to standards and directives
Compliance with standards
	Resistance to shock and impact	IEC / EN 60068. half-sine, 40 g in each X, Y, and Z axes
	vibration durability	IEC / EN 60068-2-6. Sine wave. 10 - 1000 Hz, 10 g in the X, Y, and Z axes
Certifications and approvals
UL certification		cULus Certified, Class 2 Power Supply, Type 1 enclosure
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-20 ... 50 °C (-4 ... 122 °F)
Ambient storage temperature		-30 ... 60 °C (-22 ... 140 °F)
Mechanical characteristics
Protection等级		IP65
Linkage		4-pin, M12 x 1 connector
Material
	Housing	plastic
	optical surface	polymeric lens
Mass		approx. 50 g
Measurements
	Height	100 mm
	Width	18 mm
	Depth	46 mm
