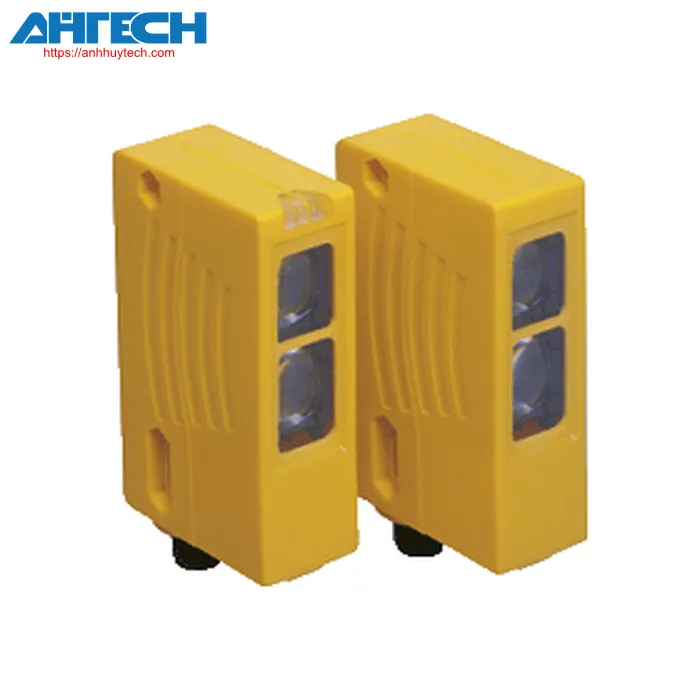

Photoelectric Sensor Pepperl+Fuchs SLA29/73c

Pepperl+Fuchs Categories

Photoelectric Sensor Pepperl+Fuchs sla29-73c

Photoelectric Sensor SLA29/73c

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo  Contact via Zalo Phone call  Phone call
Share on:
Description Download Accessories

Datasheet excerpt: Technical data of  SLA29/73c

System elements
EmitterSLA29-T/73c
ReceiverSLA29-R/73c
Overall specifications
Operational sensing range0.2 ... 30 m
detection range threshold40 m
illumination sourceLED
Illumination typemodulated red light in the visible spectrum
Target dimensionsstatic: 30 mm
dynamic: 40 mm (at v = 1.6 m/s for the target)
Alignment toolLED red located in the receiver
angle of opening< 5 °
Parameters related to functional safety
Safety Integrity Level (SIL)SIL 3
Performance level (PL)PL e
CategoryCat. 4
task duration (TM)20 a
PFHd4.4 E-10
Type4
Indicators/operation controls
Operational status indicatorLED green
operation indicatorYellow indicator LED:
1. LED continuously illuminated: signal > 2 x switching threshold (functioning margin)
2. LED blinks: signal between 1 x switching threshold and 2 x switching threshold
3. LED off: signal < threshold point
Electrical parameters
Operational voltagePower supplied through control unit
Ingress protection ratingIII , IEC 61140
Compliance
Safety functionalityISO 13849-1
Product specificationEN 61496-1 ; IEC 61496-2
Certifications and approvals
CE complianceCE
UKCA complianceUKCA
UL certificationcULus Certified
TÜV certificationTÜV SÜD
Environmental conditions
Ambient temperature-20 ... 60 °C (-4 ... 140 °F)
Ambient storage temperature-20 ... 70 °C (-4 ... 158 °F)
Comparative moisture contentmaximum 95 %, non-condensing
Impact resistance10 g, 16 ms; for stationary applications only
vibration durability1 mm, 10 ... 55 Hz; for stationary applications only
Mechanical characteristics
Protection等级IP67 in accordance with EN 60529
LinkageM12 connector, 4-pole
Material
HousingABS plastic, RLA 1021 (yellow) coated
optical surfacesynthetic panel
Massfor each unit 70 g
Measurements
Height88 mm
Width25.8 mm
Depth54.3 mm

Classifications

ConfigurationClassification code
ECLASS 13.027272701
ECLASS 12.027272701
ECLASS 11.027272701
ECLASS 10.0.127272701
ECLASS 9.027272701
ECLASS 8.027272701
ECLASS 5.127272701
ETIM 9.0EC002716
ETIM 8.0EC002716
ETIM 7.0EC002716
ETIM 6.0EC002716
ETIM 5.0EC002716
UNSPSC 12.146171620

Download Specification for SLA29/73c

Download PDF
