Encoder Turck REM-101S10S-9F32B-H1151
TURCK CATEGORIES
Encoder REM-101S10S-9F32B-H1151
Brand: Turck
Product Code: 100023545
Country of origin: DE

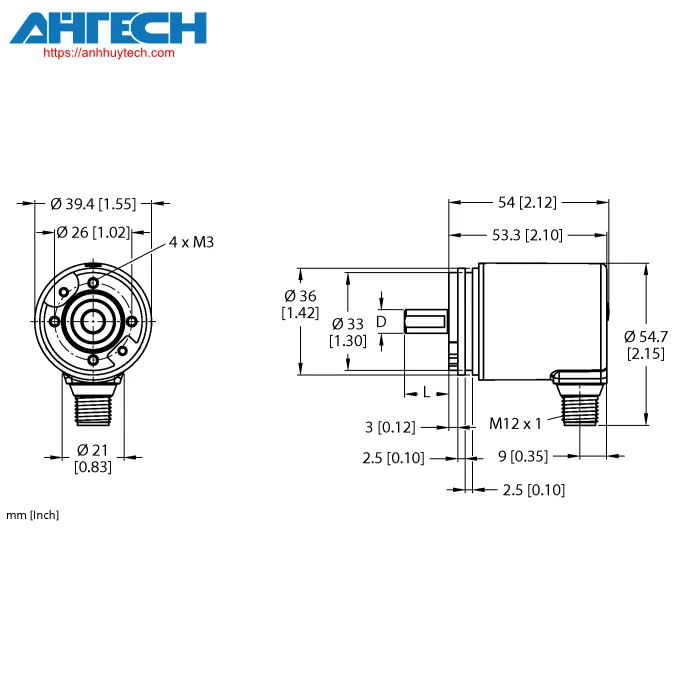

- Synchronizing flange, Ø 36 mm
- Rigid shaft, diameter Ø 10 mm × 20 mm length
- Magnetic measurement principle
- Shaft composition: stainless steel
- Safety rating IP67 on both housing and shaft sides
- -40…+80 °C
- Max. 4000 rpm (continuous duty 2000 rpm)
- 10…30 VDC
- SAE J1939
- M12 × 1 plug connector, 5-pin
- Singleturn resolution of 14 bits adjustable, standard 14 bits
- Multiturn resolution adjustable to a maximum of 29 bits over total resolution, with a default of 18 bits
- Complete resolution 32 bit configurable, preset: 32 bit
Contact via Zalo
Phone call
General data
| eCl@ss-Code (V5.1.4): | 27270501 -/- Encoder, absolute |
| Tariff classification number | 90318080000 |
| Place of manufacture | DE |
| Weight | 200 g |
Technical Data
| Encoder line | Industrial Series |
| Technology | Magnetic |
| Output category | Complete multiturn |
| Shaft Type | Rigid shaft |
| Shaft diameter d (mm) | 10 |
| Flange width | Ø 36 mm |
| Flange classification | Synchronizing flange |
| Supply voltage | 10…30 VDC |
| Communication standard | SAE J1939 |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Die-cast zinc |
| Surrounding temperature | -40…+80 °C |
| Safety rating shaft | IP67 |
| Safety rating | IP67 |
Download Specification for REM-101S10S-9F32B-H1151
Download PDF
