Flow Sensor SA4304
Brand: Ifm
Product Code: SAEXXXXB50KG/US-100
- Simultaneous measurement of flow and temperature value
- Tailored for use with water, oils, and air
- Easily readable numerical display
- Equipped with two expandable analog outputs
- The process connection is adjustable for optimal alignment
Contact via Zalo
Phone call
Product characteristics
| Total count of inputs and outputs | Quantity of analog outputs: 2 | ||
| Connection for process | Clamp connector Ø 8 mm | ||
| System | gold-plated terminals | ||
| Media | water; glycol mixtures; air; oils | ||
| Comment on medium |
| ||
| Intermediate temperature value[°C] | -20...100 | ||
| Pressure classification |
| ||
| MAWP (for uses in compliance with CRN)[bar] | 50 | ||
| Response duration[s] | 0.5; (T09; water; glycol: 0,8 s; air: 7 s; oil: 1,8 s; each T09) | ||
| Weight[g] | 312.5 | ||
| Housing | cylindrical | ||
| measurements[mm] | Ø 8 / L = 292 | ||
| Substance | stainless steel (1.4404 / 316L); PBT-GF20; PBT-GF30 | ||
| Substances (contacted components) | stainless steel (1.4404 / 316L) | ||
| Connection for process | Clamp connector Ø 8 mm |
Software / programming
| Configuration options | intermediate selection; Damping; Learning function; display can be rotated and deactivated; norm measurement unit; measured value color |
| Surrounding temperature value[°C] | -40...80 |
| Temperature for storage[°C] | -40...100 |
| Safety feature | IP 65; IP 67 |
| Length L of probe[mm] | 200 |
| Operational mode | relative; absolutely liquid; absolutely gaseous; (absolute: reference measurement recommended; default configuration: relative) |
Inputs / outputs
| Total count of inputs and outputs | Quantity of analog outputs: 2 |
| Voltage for operation[V] | 18...30 DC |
| Current draw[mA] | < 100 |
| Safety feature rating | III |
| Reverse polarity safeguard | yes |
| Activation delay time[s] | 10 |
| Measuring method | calorimetric |
| Overall count of outputs | 2 |
| Output response | analog signal |
| Total analog outputs | 2 |
| Analog current output[mA] | 4...20; (expandable) |
| Max. capacity[O] | 350 |
| Overcurrent protection | yes |
| Method of overcurrent protection | yes (momentary) |
| Overcurrent protection | yes |
| Temperature variation[cm/s x 1/K] | 0,003 m/s x 1/K (< 20 °C; > 70 °C) |
| Max. temperature value change rate of medium[K/min] | 100 |
Download Specification for SA4304
Download PDFRELATED PRODUCTS

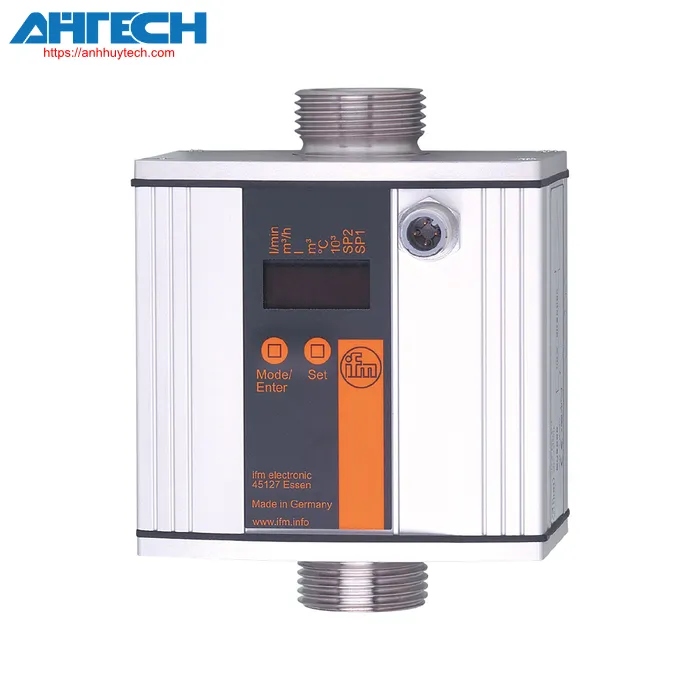

Flow Sensor SU8200
