Flow Sensor Ifm SU6030

IFM CATEGORIES

Flow Sensor Ifm su6030

Flow Sensor SU6030

Brand: Ifm
Product Code: SUR12XFBFRKG/US

  • Precise flow measurement for ultrapure water, water, oils, and glycol solutions
  • A durable, component-free measurement tube constructed from stainless steel provides excellent media resistance and long-lasting ingress protection
  • The extremely precise inline measurement method eradicates any impact from differing wall thicknesses and pipe materials
  • Operating status LED indicates the sensor's condition and provides insights into process quality

Contact via Zalo  Contact via Zalo Phone call  Phone call
Share on:
Description Download Accessories

Product characteristics

Measuring span
0.5...65 l/min30...3900 l/h0.104...13.521 m/s0.03...3.9 m³/h
Connection for process screw connection G 1/2 with outdoor thread DN15
System gold-plated terminals
Media ultra-pure water; H2O; water-soluble substances; glycol mixtures; oils; coolants
Comment on medium
water-based fluids: for mediums with >10% additives, the repeatability is the sole available parameter
lightweight oils with viscosity: 7...40 mm²/s (40 °C)
high-viscosity oils with viscosity: 30…68 mm²/s (40 °C)
Intermediate temperature value[°C] -20...100
Minimum force per unit area before bursting
150 bar15 MPa
Pressure classification
100 bar10 MPa
Vacuum tolerance[mbar] -1000
Response duration[s] < 0.25; (dAP = 0, T09)
Damping process parameter dAP[s] 0...5

Software / programming

diagnostic functions flow detection direction; signal integrity
communication interface IO-Link
Mode of transmission COM2 (38,4 kBaud)
IO-Link version 1.1.3
SDCI specification IEC 61131-9: 2013-07
Configurations
Operation classOverview
0x4000Identification and Fault Detection
Necessary master port category A
Analog data process 3
Data binary process 2
Minimum process cycle duration[ms] 9.6
IO-Link cyclic process data
Operationbit length
cumulative counter32
Flow supervision32
Temperature surveillance32
status4
Output 11
Output 21
Supported DeviceIDs>
Mode of operationDeviceID
default1754
Measuring span
0.5...65 l/min30...3900 l/h0.104...13.521 m/s0.03...3.9 m³/h
Show range
-78...78 l/min-4680...4680 l/h-16.225...16.225 m/s-4.68...4.68 m³/h
Definition of detail level
0.1 l/min2 l/h0.001 m/s0.002 m³/h
Setpoint SP
0.9...65 l/min52...3900 l/h0.18...13.521 m/s0.052...3.9 m³/h
Reset threshold rP
0.5...64.7 l/min32...3880 l/h0.111...13.452 m/s0.032...3.88 m³/h
Analog initiation point ASP
-65...52 l/min-3900...3120 l/h-13.521...10.817 m/s-3.9...3.12 m³/h
Analog endpoint AEP
-52...65 l/min-3120...3900 l/h-10.817...13.521 m/s-3.12...3.9 m³/h
Minimal flow termination LFC
0.5...3.2 l/min30...195 l/h0.104...0.676 m/s0.03...0.195 m³/h
Frequency termination point, FEP
13...65 l/min782...3900 l/h2.713...13.521 m/s0.782...3.9 m³/h
Frequency at termination point FRP[Hz] 1...10000

Inputs

Inputs reset function
Voltage for operation[V] 18...32 DC; (to SELV/PELV)
Current draw[mA] < 75
Safety feature rating III
Reverse polarity safeguard yes
Activation delay time[s] 5
Measuring method ultrasonics
Overall count of outputs 2
Output response output signal; pulse output; analog output; IO-Link; frequency output; diagnostic output; cumulative counter output signal
Electrical engineering design PNP/NPN
Output feature typically open / closed; (customizable)
Max. voltage drop at switching output DC[V] 2
Continuous current rating of the switching output DC[mA] 100
DC switching frequency[Hz] 0...10000
Analog current output[mA] 4...20
Max. capacity[O] 500
Pulse output signal flow measurement device
Overcurrent protection yes
Method of overcurrent protection yes (momentary)
Overcurrent protection yes
Precision (within the measurement range)
glycol mixtures (35%)±(5,0 % MW + 0,5 % MEW)
high-viscosity oils with viscosity 46 mm²/s (40 °C)±(5,0 % MW + 1,0 % MEW)
thin oils with viscosity 10mm²/s (40°C)±(5,0 % MW + 1,0 % MEW)
water± (2,0 % MW + 0,5 % MEW)
Reproducibility ± 0,2 % MEW
Surrounding temperature value[°C] -20...60
Temperature for storage[°C] -25...80
Safety feature IP 67

Download Specification for SU6030

Download PDF

RELATED PRODUCTS

Flow Sensor Ifm sv4500
Flow Sensor SV4500

  • Brand: IFM
  • Category Ifm Products:
    Flow Sensor
  • Product Code:
    SVK12XXXIRKG/US-100

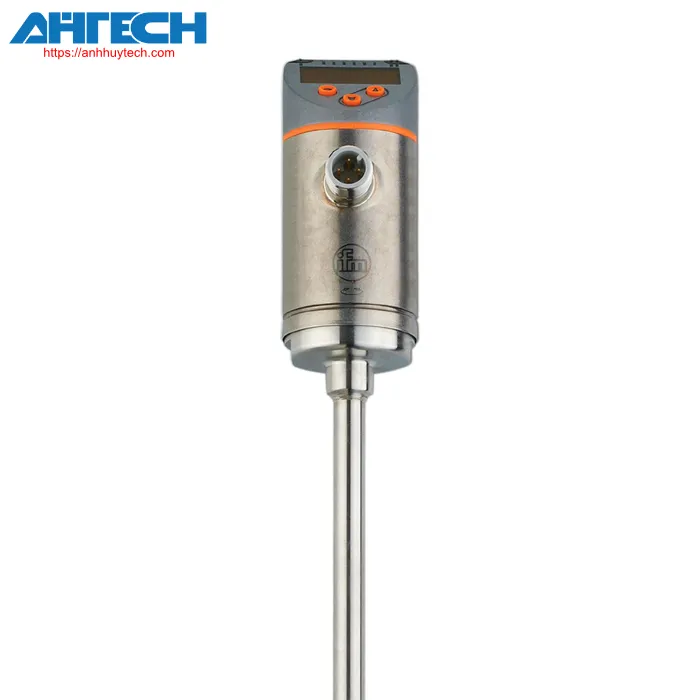

Flow Sensor Ifm sa4310
Flow Sensor SA4310

  • Brand: IFM
  • Category Ifm Products:
    Flow Sensor
  • Product Code:
    SAEXXXXBFRKG/US-100

Flow Sensor Ifm sd6050
Flow Sensor SD6050

  • Brand: IFM
  • Category Ifm Products:
    Flow Sensor
  • Product Code:
    SDR12DGXFPKG/US-100

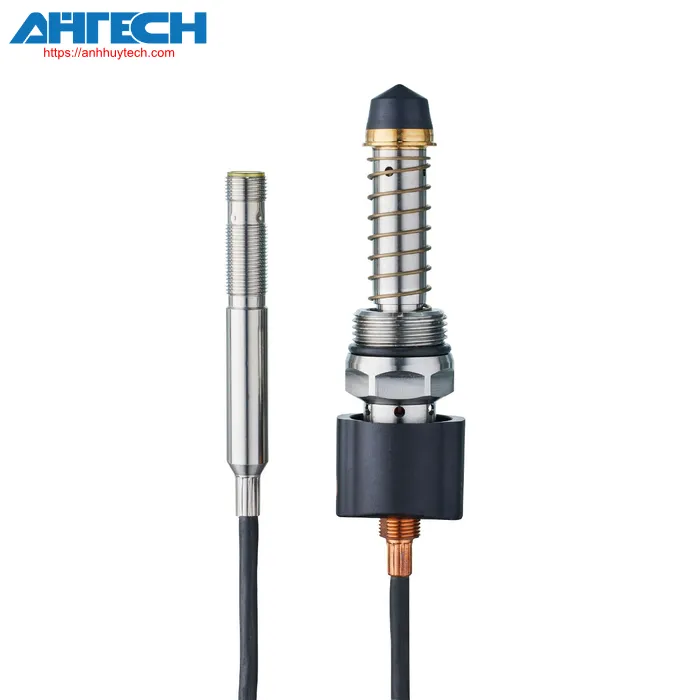

Flow Sensor Ifm sbm613
Flow Sensor SBM613

  • Brand: IFM
  • Category Ifm Products:
    Flow Sensor
  • Product Code:
    SBM34XKX10KG/O/US

Flow Sensor Ifm su2031
Flow Sensor SU2031

  • Brand: IFM
  • Category Ifm Products:
    Flow Sensor
  • Product Code:
    SUR21XFBFRKG/US

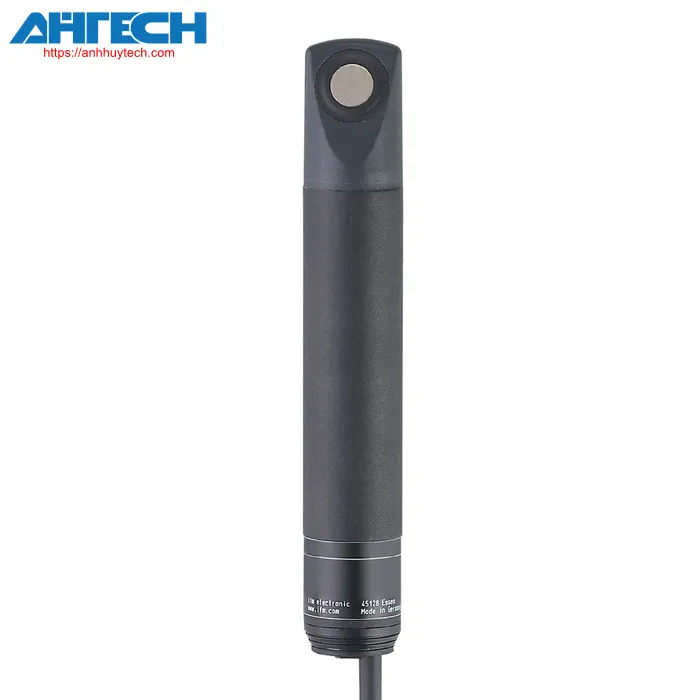

Flow Sensor Ifm sl5201
Flow Sensor SL5201

  • Brand: IFM
  • Category Ifm Products:
    Flow Sensor
  • Product Code:
    SLG23XEE40KG/2M/BS

Flow Sensor Ifm sv4614
Flow Sensor SV4614

  • Brand: IFM
  • Category Ifm Products:
    Flow Sensor
  • Product Code:
    SVN12XXX50KG/US-100

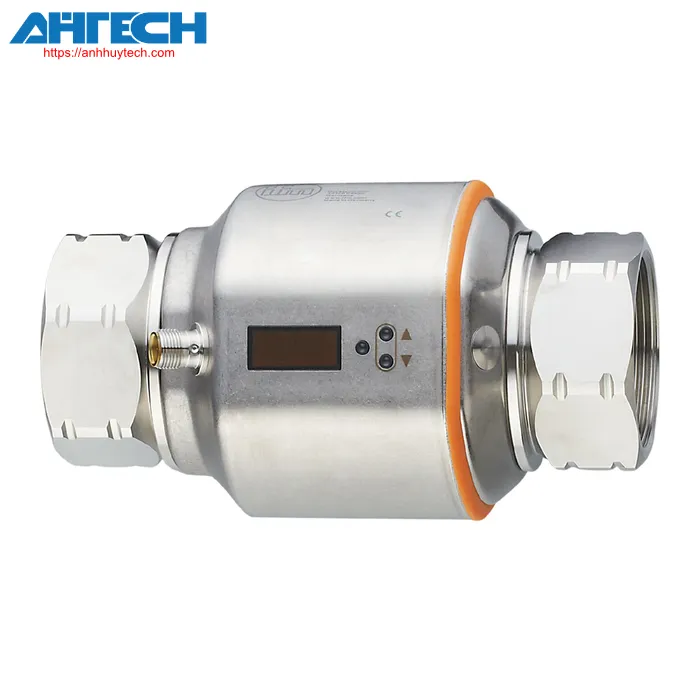

Flow Sensor Ifm sm2400
Flow Sensor SM2400

  • Brand: IFM
  • Category Ifm Products:
    Flow Sensor
  • Product Code:
    SMK21XGXFRKG/US-100

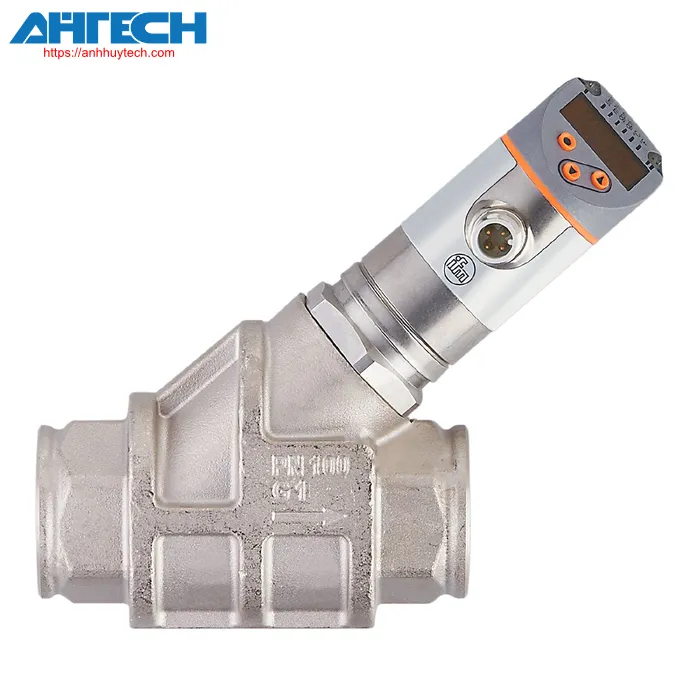

Flow Sensor Ifm sb2246
Flow Sensor SB2246

  • Brand: IFM
  • Category Ifm Products:
    Flow Sensor
  • Product Code:
    SBG11KL0FRKG

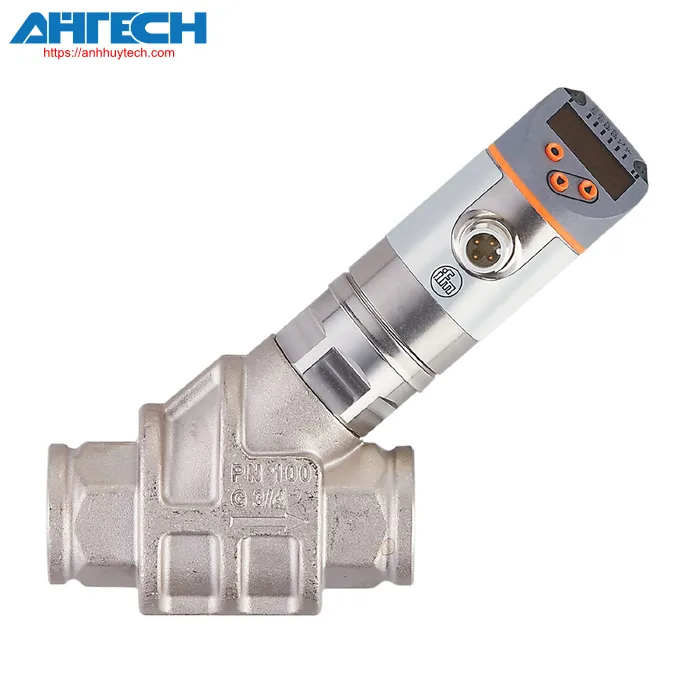

Flow Sensor Ifm sb1233
