Inductive Sensor Ifm ID5063
IFM CATEGORIES

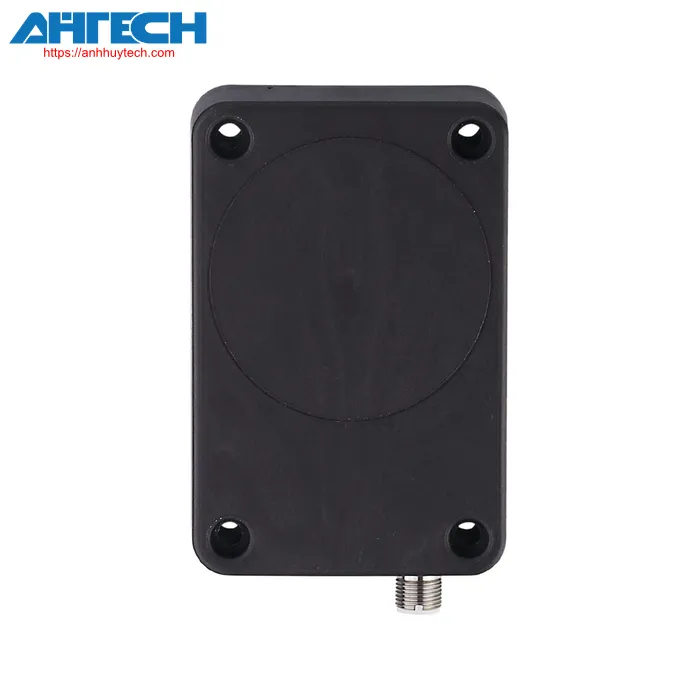

Inductive Sensor ID5063
Brand: Ifm
Product Code: ID-3050-BPKG/PP/US-100-DPS
- Extensive sensing range
- Wide active sensing surface
- Simplified adjustment of the sensing range using a variable resistor
- Durable enclosure designed for operation in demanding industrial conditions
- Featuring a durable M12 connector
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open |
| Detection range[mm] | 50 |
| Housing | rectangular shape |
| measurements[mm] | 120 x 80 x 30 |
| System | gold-plated terminals |
Mechanical data
| Weight[g] | 479.5 | ||
| Housing | rectangular shape | ||
| Installation | non-recessed mountable | ||
| measurements[mm] | 120 x 80 x 30 | ||
| Substance | enclosure: PP black; sensing surface: PP black | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 | ||
| Hysteresis[% of Sr] | 1...15 | ||
| Setting-point drift[% of Sr] | -10...10 |
Outputs
| Electrical engineering design | PNP | |
| Output feature | typically open | |
| Max. voltage drop at switching output DC[V] | 2.5 | |
| Continuous current rating of the switching output DC[mA] | 250 | |
| DC switching frequency[Hz] | 8 | |
| Overcurrent protection | yes | |
| Method of overcurrent protection | yes (momentary) | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...36 DC | |
| Current draw[mA] | 15; (24 V) | |
| Safety feature rating | II | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 50 | |
| Adjustable sensing range | yes | |
| sensing range set at the factory[mm] | 50 | |
| Actual sensing range Sr[mm] | 50 ± 10 % | |
| Operational range[mm] | 0...40.5 | |
| Surrounding temperature value[°C] | -25...80 | |
| Safety feature | IP 67 | |
| Items provided |
|
Download Specification for ID5063
