Inductive Sensor Ifm IE5399
IFM CATEGORIES

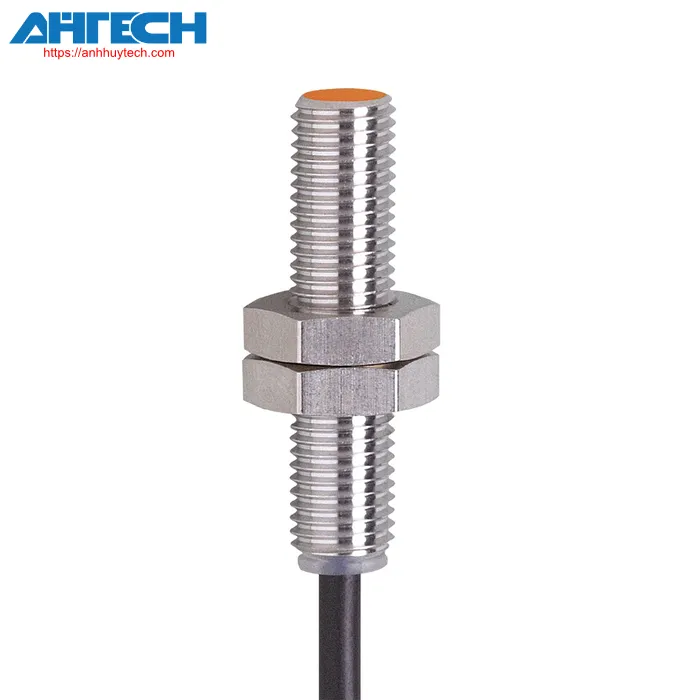

Inductive Sensor IE5399
Brand: Ifm
Product Code: IEB3002BBPKG/V4A/8M
- Compact housing design
- Suitable for applications with limited space
- Compact connection technology
- Durable metal enclosure designed for harsh industrial conditions
- Extremely high switching frequency
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open |
| Detection range[mm] | 2 |
| Housing | Screw-type |
| measurements[mm] | M8 x 1 / L = 27 |
| Voltage for operation[V] | 10...30 DC; (; to PELV) |
| Current draw[mA] | < 15 |
| Safety feature rating | III |
| Reverse polarity safeguard | yes |
| Weight[g] | 158.6 |
| Housing | Screw-type |
| Installation | recessed installation compatible |
| measurements[mm] | M8 x 1 / L = 27 |
| Thread specification | M8 x 1 |
| Substance | stainless steel; sensing surface: LCP |
| Connection | Cable: 8 m, PUR; 3 x 0.14 mm² |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | -20...70 | ||
| Safety feature | IP 67 |
Monitoring range
| Detection range[mm] | 2 |
| Actual sensing range Sr[mm] | 2 ± 10 % |
| Operational range[mm] | 0...1.62 |
| Electrical engineering design | PNP |
| Output feature | typically open |
| Max. voltage drop at switching output DC[V] | 2.5 |
| Continuous current rating of the switching output DC[mA] | 100 |
| DC switching frequency[Hz] | 1500 |
| Overcurrent protection | yes |
| Method of overcurrent protection | yes (momentary) |
| Overcurrent protection | yes |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
| Hysteresis[% of Sr] | 1...15 |
| Setting-point drift[% of Sr] | -10...10 |
Download Specification for IE5399
