Inductive Sensor Ifm IES242
IFM CATEGORIES

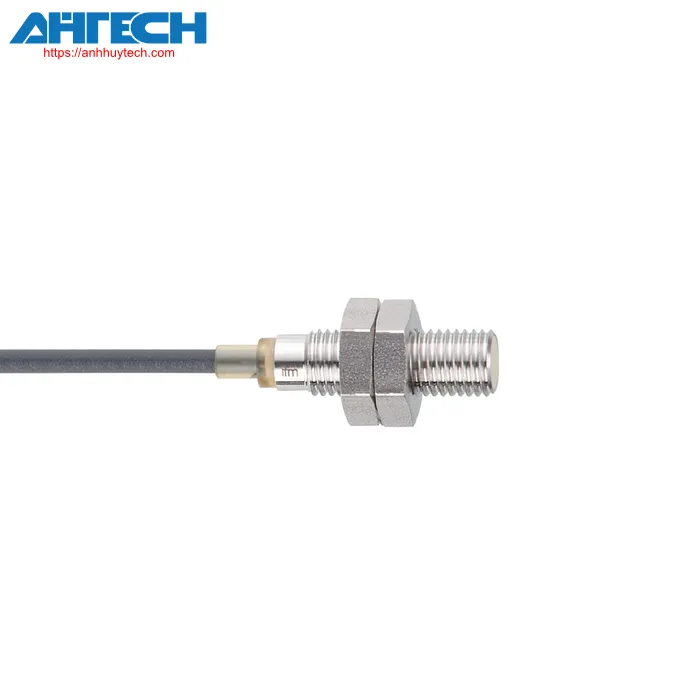

Inductive Sensor IES242
Brand: Ifm
Product Code: IEB3003BANKG/V4A/2M/PUR
- Appropriate for industrial, mobile, cooling, and lubrication applications
- Elevated protection rating to meet the demands of challenging industrial conditions
- Broad operating temperature value spectrum
- Reliable detection enabled by an extensive sensing range and minimal sensor tolerances
- Decreased inventory levels resulting from a broad array of applications
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | NPN |
| Output feature | typically open |
| Detection range[mm] | 3 |
| Housing | Screw-type |
| measurements[mm] | M8 x 1 / L = 27.5 |
| System | Extended sensing range |
| Application | Appropriate for industrial, mobile, cooling, and lubrication applications; Industrial uses; Designed for mobile and demanding environments |
Mechanical data
| Weight[g] | 38.6 | ||
| Housing | Screw-type | ||
| Installation | recessed installation compatible | ||
| measurements[mm] | M8 x 1 / L = 27.5 | ||
| Thread specification | M8 x 1 | ||
| Substance | stainless steel (1.4404 / 316L); sensing surface: white LCP; LED lens: PEI; locking nuts: stainless steel (1.4404 / 316L) | ||
| Fastening torque[Nm] | A = 5 mm: 2 Nm; B: 5 Nm | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3 | ||
| Hysteresis[% of Sr] | 1...20 | ||
| Setting-point drift[% of Sr] | -10...10 |
Outputs
| Electrical engineering design | NPN | |
| Output feature | typically open | |
| Max. voltage drop at switching output DC[V] | 2.5 | |
| Continuous current rating of the switching output DC[mA] | 100 | |
| DC switching frequency[Hz] | 1500 | |
| Overcurrent protection | yes | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...30 DC | |
| Current draw[mA] | < 10 | |
| Safety feature rating | III | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 3 | |
| Actual sensing range Sr[mm] | 3 ± 10 % | |
| Operational range[mm] | 0...2.43 | |
| Extended sensing range | yes | |
| Surrounding temperature value[°C] | -40...85 | |
| Safety feature | IP 65; IP 66; IP 67; IP 68; IP 69K | |
| Items provided |
|
