Inductive Sensor Ifm IG5495
IFM CATEGORIES

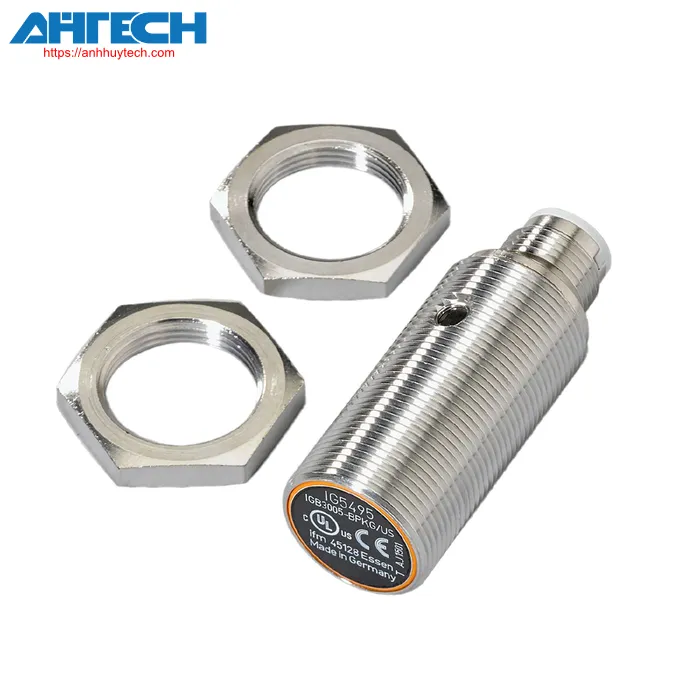

Inductive Sensor IG5495
Brand: Ifm
Product Code: IGB3005-BPKG/US-104
- Durable metal enclosure designed for harsh industrial conditions
- Broad operating temperature value spectrum
- Extremely high switching frequency
- Easily discernible indication of the switching status
- Elevated protection rating to meet the demands of challenging industrial conditions
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open |
| Detection range[mm] | 5 |
| Housing | Screw-type |
| measurements[mm] | M18 x 1 / L = 50 |
| System | gold-plated terminals |
Mechanical data
| Weight[g] | 44.5 | ||
| Housing | Screw-type | ||
| Installation | recessed installation compatible | ||
| measurements[mm] | M18 x 1 / L = 50 | ||
| Thread specification | M18 x 1 | ||
| Substance | enclosure: brass with white bronze finish; sensing surface: orange PBT; LED cover: PEI; locking nuts: brass with white bronze plating | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 | ||
| Hysteresis[% of Sr] | 3...15 | ||
| Setting-point drift[% of Sr] | -10...10 |
Outputs
| Electrical engineering design | PNP | |
| Output feature | typically open | |
| Max. voltage drop at switching output DC[V] | 2.5 | |
| Continuous current rating of the switching output DC[mA] | 100 | |
| DC switching frequency[Hz] | 500 | |
| Overcurrent protection | yes | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...30 DC | |
| Current draw[mA] | < 10 | |
| Safety feature rating | II | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 5 | |
| Actual sensing range Sr[mm] | 5 ± 10 % | |
| Operational range[mm] | 0...4.05 | |
| Surrounding temperature value[°C] | -25...80 | |
| Safety feature | IP 67 | |
| Items provided |
|
Download Specification for IG5495
