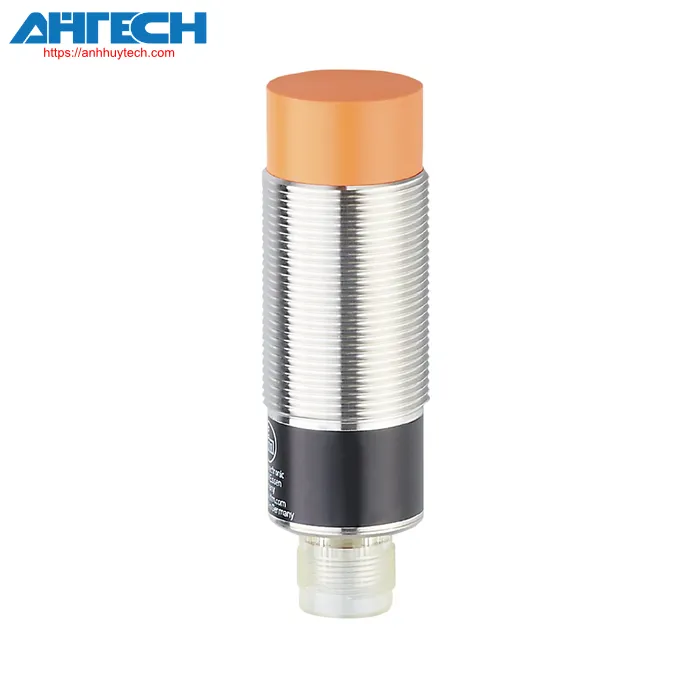

Inductive Sensor II5483
Brand: Ifm
Product Code: IIA3015-BPKG/BS-301-APS
- Durable metal enclosure designed for harsh industrial conditions
- Broad operating temperature value spectrum
- Durable and easily readable laser-printed label
- Featuring a sturdy Ø 28 mm connector
- For accurate position sensing on machinery
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open |
| Detection range[mm] | 15 |
| Housing | Screw-type |
| measurements[mm] | M30 x 1.5 |
| Voltage for operation[V] | 10...36 DC |
| Current draw[mA] | 15; (24 V) |
| Safety feature rating | II |
| Reverse polarity safeguard | yes |
| Weight[g] | 171 |
| Housing | Screw-type |
| Installation | non-recessed mountable |
| measurements[mm] | M30 x 1.5 |
| Thread specification | M30 x 1.5 |
| Substance | brass with nickel plating; CO-PC |
| Connection | Connector: 1 x M18; coding: A |
Displays / operating elements
| Display |
| ||
| Items provided |
| ||
| Surrounding temperature value[°C] | -25...80 | ||
| Safety feature | IP 65 |
Monitoring range
| Detection range[mm] | 15 |
| Actual sensing range Sr[mm] | 15 ± 10 % |
| Operational range[mm] | 0...12.1 |
| Electrical engineering design | PNP |
| Output feature | typically open |
| Max. voltage drop at switching output DC[V] | 2.5 |
| Continuous current rating of the switching output DC[mA] | 250 |
| DC switching frequency[Hz] | 200 |
| Overcurrent protection | yes |
| Method of overcurrent protection | yes (momentary) |
| Overcurrent protection | yes |
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
| Hysteresis[% of Sr] | 1...15 |
| Setting-point drift[% of Sr] | -10...10 |
