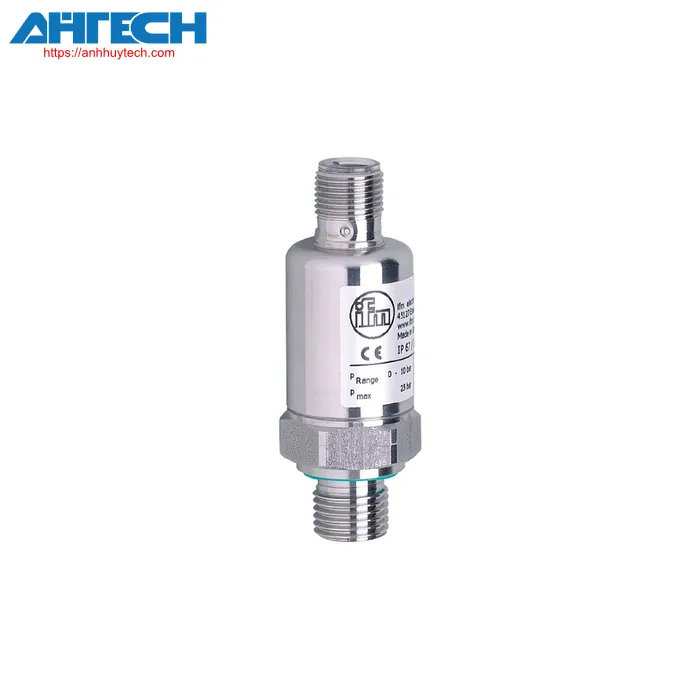

Pressure Sensor PT9543
Brand: Ifm
Product Code: PT-025-SBG14-B-DVG/US/ /W
- Consistent monitoring of system force per unit area in industrial applications
- Excellent resistance to shock and vibration
- Outstanding repeatability with minimal linearity error
- Service life exceeding 50 million force per unit area cycles
- Space-efficient and durable stainless steel enclosure designed for applications in confined areas
Contact via Zalo
Phone call
Product characteristics
| Total count of inputs and outputs | Count of analog outputs: 1 | |||
| Measuring span |
| |||
| Connection for process | screw connection G 1/4 with outdoor threading | |||
| Application | for commercial applications | |||
| Media | fluids and gases | |||
| Intermediate temperature value[°C] | -25...90 | |||
| Minimum force per unit area before bursting |
| |||
| Pressure classification |
| |||
| Kind of force per unit area | relative force per unit area | |||
| Step response duration for analog output[ms] | 3 |
Operating conditions
| Surrounding temperature value[°C] | -25...90 | |||
| Temperature for storage[°C] | -40...100 | |||
| Safety feature | IP 67; IP 69K | |||
| Measuring span |
|
Inputs / outputs
| Total count of inputs and outputs | Count of analog outputs: 1 |
| Voltage for operation[V] | 16...36 DC |
| Current draw[mA] | < 6 |
| Minimum insulation resistance[MO] | 100; (500 V DC) |
| Safety feature rating | III |
| Reverse polarity safeguard | yes |
| Overall count of outputs | 1 |
| Output response | analog signal |
| Total analog outputs | 1 |
| Analog voltage output[V] | 0...10 |
| Minimum load resistance[O] | 2000 |
| Reproducibility[% of the span] | < ± 0,1; (with temperature value fluctuations < 10 K) |
| Characteristics variation[% of the span] | < ± 1,8; (incl. drift due to tightening torque, zero and span error) |
| Linearity variation[% of the span] | < ± 0.25 (BFSL) / < ± 0.5 (LS) |
| Hysteresis variation[% of the span] | < ± 0,2 |
| Extended stability[% of the span] | < ± 0,1; (per 6 months) |
| Temperature coefficient value for the zero reference[% of the span / 10 K] | < ± 0,1; (-25...90 °C) |
| Temperature coefficient value for the range[% of the span / 10 K] | < ± 0,1; (-25...90 °C) |
| Weight[g] | 81.5 |
| Housing | cylindrical |
| measurements[mm] | Ø 22 / L = 65.1 |
| Substance | stainless steel (1.4404 / 316L); PA |
| Substances (contacted components) | stainless steel (1.4404 / 316L); FKM |
| Minimum force per unit area cycles | 50 million |
| Connection for process | screw connection G 1/4 with outdoor threading |
| Integrated restrictor component | not available (can be retrofitted) |
Download Specification for PT9543
Download PDFRELATED PRODUCTS
