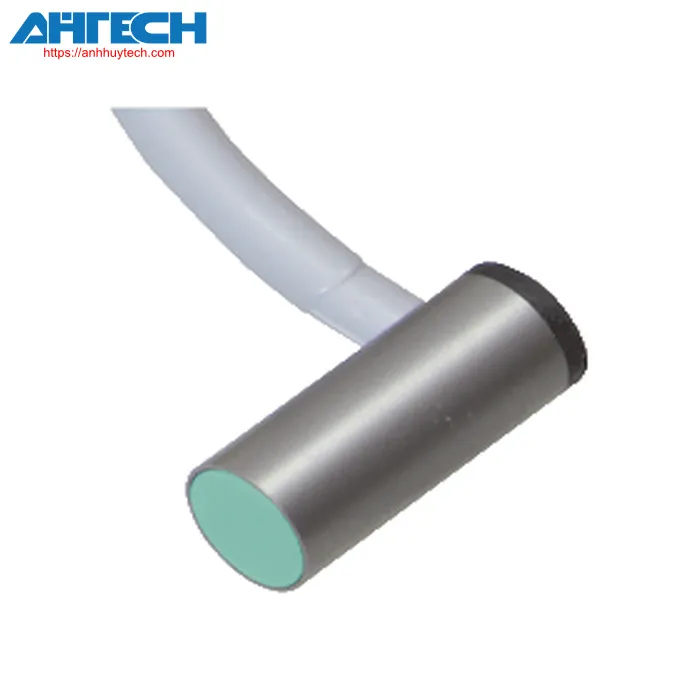

Inductive Sensor Pepperl+Fuchs NBB2-6,5S16-E2-Y273690

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Overall specifications
transition function		normally open (NO)
Output configuration		PNP
Specified functioning distance		2 mm
mounting		flush
Output configuration		DC
Guaranteed functioning distance		0 ... 1.62 mm
diminution factor r_Al		0.3
diminution factor r_Cu		0.25
diminution factor r₃₀₄		0.7
diminution factor r_St37		1
diminution factor r_Brass		0.4
Output configuration		3-wire
Rated specifications
Operational voltage		10 ... 30 V
commutation frequency		0 ... 5000 Hz
Deadband		= 10 %
Polarity reversal protection		reverse polarity safeguarded
Overcurrent protection		pulsing
voltage loss		= 2 V
Operational current		0 ... 200 mA
Non-conducting current		= 0.1 mA
No-load input current		= 10 mA
State indication for switching		LED
Adherence to standards and directives
Compliance with standards
	Standards	EN IEC 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Standard Use
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-25 ... 70 °C (-13 ... 158 °F)
Mechanical characteristics
Linkage method		cable PVC , 2 m
cross section of the core		0.14 mm²
Housing material		Stainless steel 1.4305 / AISI 303
detection surface		PA 12
Protection等级		IP67
Measurements
	Length	16 mm
	Diameter	6.5 mm
