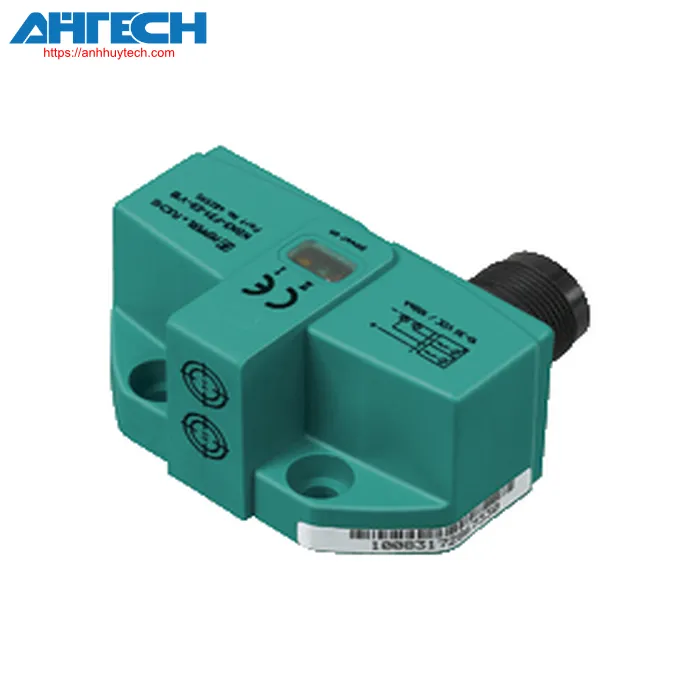

Inductive Sensor Pepperl+Fuchs NBN3-F31-U8-V18
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of NBN3-F31-U8-V18
| Overall specifications | ||
|---|---|---|
| transition function | 2 x normally open (NO) | |
| Specified functioning distance | 3 mm | |
| mounting | surface mountable | |
| Output configuration | AC/DC | |
| Guaranteed functioning distance | 0 ... 2.43 mm | |
| diminution factor rAl | 0.45 | |
| diminution factor rCu | 0.38 | |
| diminution factor r304 | 1 | |
| diminution factor rSt37 | 1.04 | |
| Output configuration | 4-wire | |
| Rated specifications | ||
| Operational voltage | 20 ... 253 V AC/DC | |
| commutation frequency | 25 Hz | |
| Deadband | typ. 3 % | |
| Polarity reversal protection | yes | |
| Overcurrent protection | yes | |
| voltage loss | = 8 V | |
| Operational current | 4 ... 400 mA | |
| Non-conducting current | = 1.7 mA | |
| Voltage functioning indicator | LED, green | |
| State indication for switching | LED, yellow | |
| Parameters related to functional safety | ||
| MTTFd | 529 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Adherence to standards and directives | ||
| Compliance with standards | ||
| Standards | EN IEC 60947-5-2 | |
| Certifications and approvals | ||
| Ingress protection rating | II | |
| Nominal insulation voltage | 253 V | |
| Rated surge voltage withstand capability | 4 kV | |
| UL certification | cULus Certified, Standard Use | |
| CSA certification | cCSAus Listed, Intended for General Use | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical characteristics | ||
| Linkage method | plug connector M18 x 1, 4-contact | |
| Housing material | PBT | |
| detection surface | PBT | |
| Protection等级 | IP67 | |
| Fastening torque for securing screws | 4 Nm ... 5 Nm | |
| Measurements | ||
| Height | 33.5 mm | |
| Width | 65 mm | |
| Length | 36 mm | |
Classifications
| Configuration | Classification code |
|---|---|
| ECLASS 13.0 | 27273901 |
| ECLASS 12.0 | 27273901 |
| ECLASS 11.0 | 27220501 |
| ECLASS 10.0.1 | 27220501 |
| ECLASS 9.0 | 27220501 |
| ECLASS 8.0 | 27220501 |
| ECLASS 5.1 | 27220501 |
| ETIM 9.0 | EC002714 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
