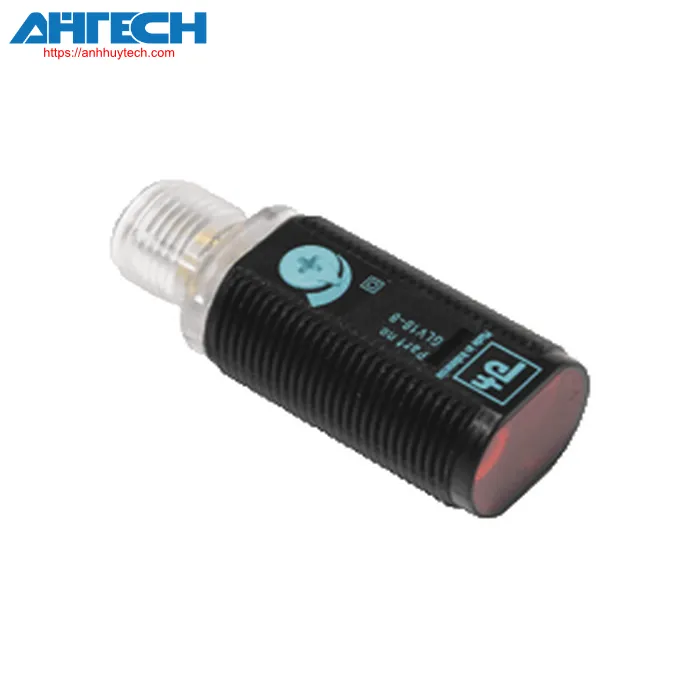

Photoelectric Sensor Pepperl+Fuchs GLV18-8-600-IR/73/120
Pepperl+Fuchs Categories
Photoelectric Sensor GLV18-8-600-IR/73/120
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of GLV18-8-600-IR/73/120
| Item Specification | ||
|---|---|---|
| Diffuse reflection sensor with M18 threaded housing design, plastic enclosure, front optical interface, 600 mm sensing range, red light, light/dark on functionality, DC version, 2 PNP outputs, and M12 connector | ||
| Overall specifications | ||
|---|---|---|
| Detection distance | 50 ... 600 mm adjustable | |
| Maximum detection range | 0 ... 600 mm | |
| Reference point | 100 mm x 100 mm Kodak white | |
| illumination source | LED | |
| Illumination type | modulated infrared light at 850 nm | |
| Size of the illumination spot | approx. 60 mm at 600 mm | |
| angle of opening | approx. 6 ° | |
| optical surface | frontal | |
| Ambient light threshold | 30000 Lux | |
| Deadband | < 15 % | |
| Parameters related to functional safety | ||
| MTTFd | 920 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Indicators/operation controls | ||
| Operational status indicator | Green LED, continuously illuminated Power on | |
| operation indicator | Yellow indicator LED: illuminates when an object is detected; blinks when the functioning reserve is insufficient | |
| control components | Sensitivity calibration | |
| Electrical parameters | ||
| Operational voltage | 10 ... 30 V DC | |
| No-load input current | < 20 mA | |
| Output | ||
| Type of switch | light/dark on | |
| Output signal | 2 PNP, supplementary, short-circuit protected, open collectors | |
| Switching voltage level | max. 30 V DC | |
| Switching capacity | max. 100 mA | |
| voltage loss | = 1.5 V DC | |
| commutation frequency | 500 Hz | |
| reaction time | = 1 ms | |
| Compliance | ||
| Product specification | EN 60947-5-2 | |
| Certifications and approvals | ||
| Ingress protection rating | II, Nominal insulation voltage = 50 V AC with pollution degree 1-2 according to IEC 60664-1 | |
| UL certification | cULus approved, Class 2 power supply | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) | |
| Ambient storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP67 | |
| Linkage | 4-pin, M12 x 1 connector | |
| Material | ||
| Housing | PC | |
| optical surface | PMMA | |
| Connector device | plastic | |
| Mass | approx. 10 g | |
| Measurements | ||
| Length | 43.9 mm | |
| Diameter | 18 mm | |
| Thread dimension | M18 | |
Download Specification for GLV18-8-600-IR/73/120
Download PDF
