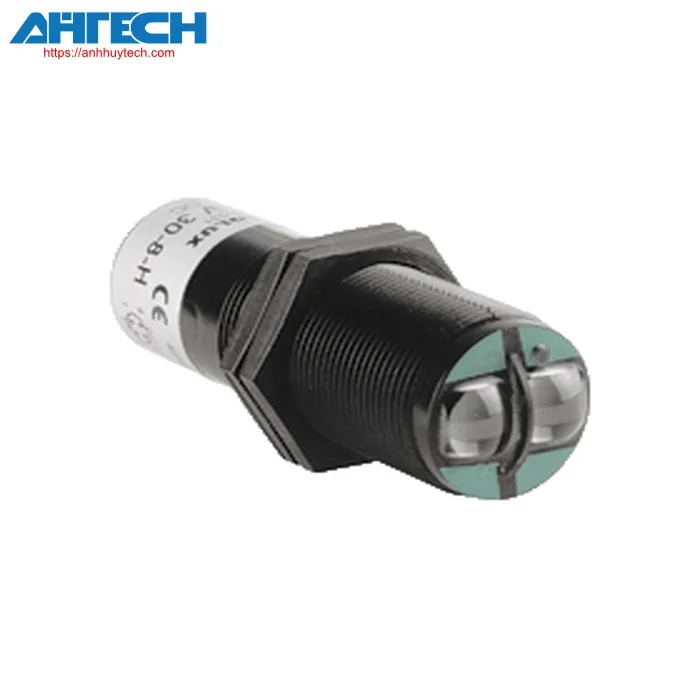

Photoelectric Sensor Pepperl+Fuchs GLV30-8-H-2407

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Item Specification
Background elimination sensor

Overall specifications
Detection distance		50 ... 1000 mm
Background elimination		begins at 2000 mm
illumination source		IRED
Illumination type		modulated infrared light
Black-white contrast (6 %/90 %)		< 700 mm
Size of the illumination spot		30 mm at a separation of 1000 mm
angle of opening		± 1 °
Ambient light threshold		30000 Lux
Indicators/operation controls
operation indicator		Yellow indicator LED, illuminates when the receiver is inactive
Electrical parameters
Operational voltage		24 V DC ± 20 %
Ripple		10 %
No-load input current		30 mA
Output
Type of switch		dark-on
Output signal		1 PNP, protected against short circuits, safeguarded against reverse polarity, open collector
Switching voltage level		max. 30 V DC
Switching capacity		max. 200 mA
commutation frequency		25 Hz
reaction time		20 ms
Compliance
Product specification		EN 60947-5-2
Certifications and approvals
UL certification		cULus Certified, Class 2 Power Supply, Type 1 enclosure
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-20 ... 60 °C (-4 ... 140 °F)
Ambient storage temperature		-20 ... 75 °C (-4 ... 167 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		M12 x 1 plastic connector, 4-pin
Material
	Housing	ABS
	optical surface	polymeric lenses
Mass		approx. 70 g
Measurements
	Length	89 mm
	Diameter	30 mm
