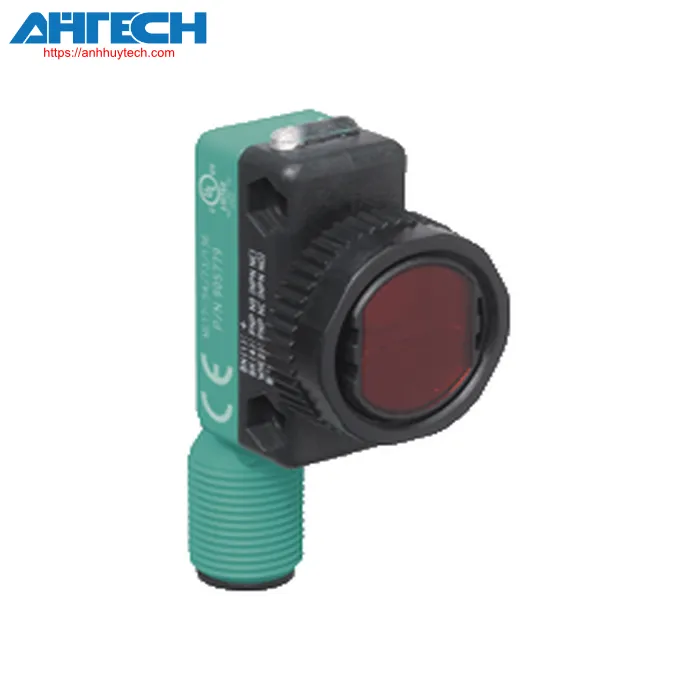

Photoelectric Sensor ML17-54/73/136

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of ML17-54/73/136

Classifications

Item Specification
Retroreflective detector featuring a polarization filter

Overall specifications
Operational sensing range		0 ... 3.5 m
reflector spacing		50 ... 3500 mm
detection range threshold		5 m
Reference point		FE-RR1 reflective device
illumination source		LED
Illumination type		modulated red light in the visible spectrum , 626 nm
polarizing filter		yes
Ambient light threshold		= 10000 Lux
Indicators/operation controls
Operational status indicator		LED green
operation indicator		Yellow indicator LED illuminates when the receiver is activated
control components		Sensitivity calibration
Electrical parameters
Operational voltage		10 ... 30 V DC , class 2
Ripple		max. 10 %
No-load input current		< 25 mA
Operational current		100 mA maximum per output
Delay time prior to availability		= 200 ms
Output
Type of switch		light/dark on
Output signal		2 push-pull (4 in 1) outputs, equipped with short-circuit protection, reverse polarity protection, and overvoltage protection
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA
voltage loss		= 2 V DC
commutation frequency		500 Hz
reaction time		= 1 ms
Compliance
Product specification		EN 60947-5-2
Certifications and approvals
EAC compliance		TR CU 020/2011
UL certification		cULus
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-20 ... 55 °C (-4 ... 131 °F)
Ambient storage temperature		-20 ... 70 °C (-4 ... 158 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		4-pin, M12 x 1 connector
Material
	Housing	ABS
	optical surface	Acrylic
Mass		approx. 8.5 g
Measurements
	Height	34.5 mm
	Width	15 mm
	Length	29.3 mm
