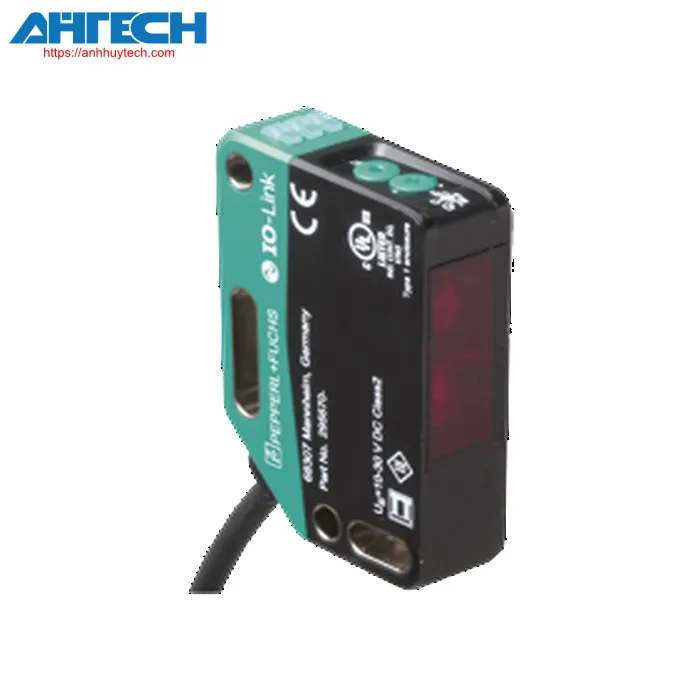

Photoelectric Sensor OBG8000-R201-2EP-IO-0,3M-V1

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of OBG8000-R201-2EP-IO-0,3M-V1

Classifications

Item Specification
Retroreflective detector featuring a polarization filter for precise object recognition

Overall specifications
Operational sensing range		0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N"
reflector spacing		0 ... 5.6 m in TEACH mode ; 0 ... 8 m at switch position "N"
detection range threshold		9 m
Reference point		H85-2 reflective surface
illumination source		LED
Illumination type		modulated red light in the visible spectrum
LED risk category labeling		exemption category
polarizing filter		yes
Size of the illumination spot		approx. 170 mm at a distance of 3.5 m
angle of opening		approx. 5 °
Ambient light threshold		EN 60947-5-2 : 18000 Lux
Parameters related to functional safety
MTTF_d		600 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green: always active - power on flashing (4Hz) - short circuit condition flashing with brief interruption (1 Hz) - IO-Link mode
operation indicator		Yellow LED: Constantly illuminated - unobstructed light path Permanently off - entity detected Flashing (4 Hz) - inadequate operational reserve
control components		learning key
control components		5-position rotary switch for selecting functioning modes
Difference detection thresholds		10 % - clean, water-filled PET bottles 18% - transparent glass containers 40 % - colored glass or non-transparent materials Configurable using a rotary switch
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load input current		< 25 mA at 24 V supply voltage
Ingress protection rating		III
Connection point
Type of interface		IO-Link ( via C/Q = pin 4 )
IO-Link revision		1.1
equipment profile		Recognition and troubleshooting Intelligent Sensor model 2.4
Device ID		0x111A11 (1120785)
data transfer rate		COM2 (38.4 kBit/s)
Minimum cycle time		2.3 ms
process data range		process data entry 2 Bit procedural information output 2 Bit
SIO mode support		yes
Compatible master port classification		A
Output
Type of switch		The sensor features an adjustable switching type. The factory default setting is: C/Q - Pin4: NPN default open / dark-on, PNP default closed / light-on, IO-Link /Q - Pin2: NPN configuration normally closed / light-activated, PNP configuration normally open / dark-activated
Output signal		2 push-pull (4 in 1) outputs, equipped with short-circuit protection, reverse polarity protection, and overvoltage protection
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA, resistive load
Usage category		DC-12 and DC-13
voltage loss		= 1.5 V DC
commutation frequency		500 Hz
reaction time		1 ms
Compliance
Communication interface		IEC 61131-9
Product specification		EN 60947-5-2
Certifications and approvals
UL certification		E87056, cULus Certified, Class 2 power supply, type rating 1
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-20 ... 60 °C (-4 ... 140 °F)
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67 / IP69 / IP69K
Linkage		300 mm stationary cable featuring an M12 x 1, 4-pin connector
Material
	Housing	PC (PC (polycarbonate))
	optical surface	PMMA
Mass		approx. 55 g
Measurements
	Height	61.7 mm
	Width	15 mm
	Depth	41.7 mm
Cable duration		0.3 m
