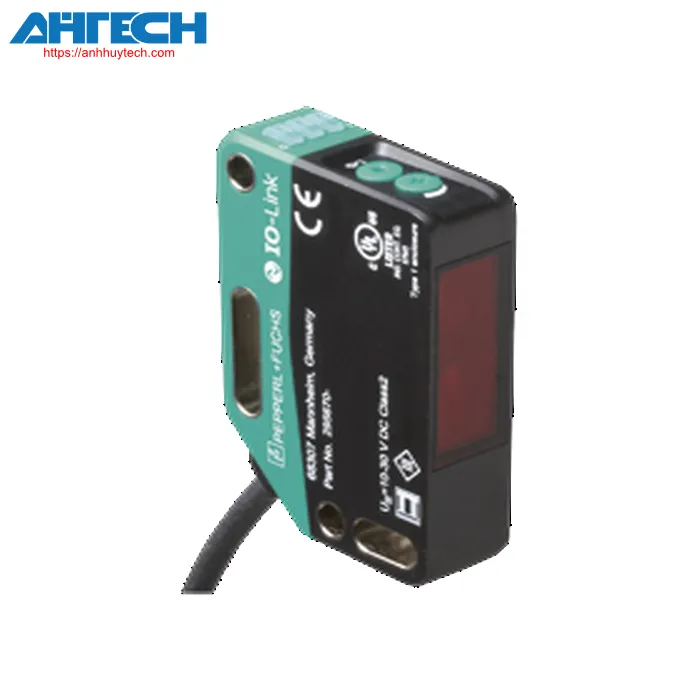

Photoelectric Sensor Pepperl+Fuchs OBR25M-R201-EP-IO-0,3M-V3-L

Pepperl+Fuchs Categories

Photoelectric Sensor OBR25M-R201-EP-IO-0,3M-V3-L

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of OBR25M-R201-EP-IO-0,3M-V3-L

Classifications

Item Specification
Laser-based retroreflective sensor

Overall specifications
Operational sensing range		0 ... 25 m
reflector spacing		0.5 ... 25 m
detection range threshold		33 m
Reference point		H85-2 reflective surface
illumination source		laser diode
Illumination type		modulated red light in the visible spectrum
polarizing filter		yes
Laser specified ratings
	Note	LASER LIGHT , DO NOT STARE INTO BEAM
	Laser category	1
	Wavelength	680 nm
	Beam spreading	> 5 mrad d63 < 2 mm throughout the range of 250 mm ... 750 mm
	pulse duration	1.6 µs
	Repetition frequency	max. 17.6 kHz
	maximum pulse energy	9.6 nJ
Size of the illumination spot		approximately 50 mm at a separation of 25 m
angle of opening		approx. 0.1 °
Ambient light threshold		EN 60947-5-2 : 60000 Lux
Parameters related to functional safety
MTTF_d		672 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green: always active - power on flashing (4Hz) - short circuit condition flashing with brief interruption (1 Hz) - IO-Link mode
operation indicator		Yellow LED: Constantly illuminated - unobstructed light path Permanently off - entity detected Flashing (4 Hz) - inadequate operational reserve
control components		Light-on/dark-on toggle switch
control components		Sensitivity calibration
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load input current		< 15 mA at 24 V supply voltage
Ingress protection rating		III
Connection point
Type of interface		IO-Link ( via C/Q = pin 4 )
IO-Link revision		1.1
equipment profile		Recognition and troubleshooting Intelligent Sensor model 2.4
Device ID		0x111212 (1118738)
data transfer rate		COM2 (38.4 kBit/s)
Minimum cycle time		2.3 ms
process data range		process data entry 2 Bit procedural information output 2 Bit
SIO mode support		yes
Compatible master port classification		A
Output
Type of switch		The sensor features an adjustable switching type. The factory default setting is: C/Q - Pin4: NPN default open / dark-on, PNP default closed / light-on, IO-Link
Output signal		1 push-pull (4 in 1) output, short-circuit protection, reverse polarity protection, overvoltage protection
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA, resistive load
Usage category		DC-12 and DC-13
voltage loss		= 1.5 V DC
commutation frequency		2000 Hz
reaction time		250 µs
Compliance
Communication interface		IEC 61131-9
Product specification		EN 60947-5-2
Laser safety		EN 60825-1:2014
Certifications and approvals
UL certification		E87056, cULus Certified, Class 2 power supply, type rating 1
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
FDA certification		IEC 60825-1:2007 conforms with 21 CFR 1040.10 and 1040.11, excluding deviations as stated in Laser Notice No. 50, dated June 24, 2007
Environmental conditions
Ambient temperature		-40 ... 60 °C (-40 ... 140 °F), cable, stationary installation -20 ... 60 °C (-4 ... 140 °F), flexible cable unsuitable for use with conveyor chains
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67 / IP69 / IP69K
Linkage		300 mm static cable featuring an M8 x 1, 3-pin connector
Material
	Housing	PC (PC (polycarbonate))
	optical surface	PMMA
Mass		approx. 51 g
Measurements
	Height	61.7 mm
	Width	15 mm
	Depth	41.7 mm
Cable duration		0.3 m
