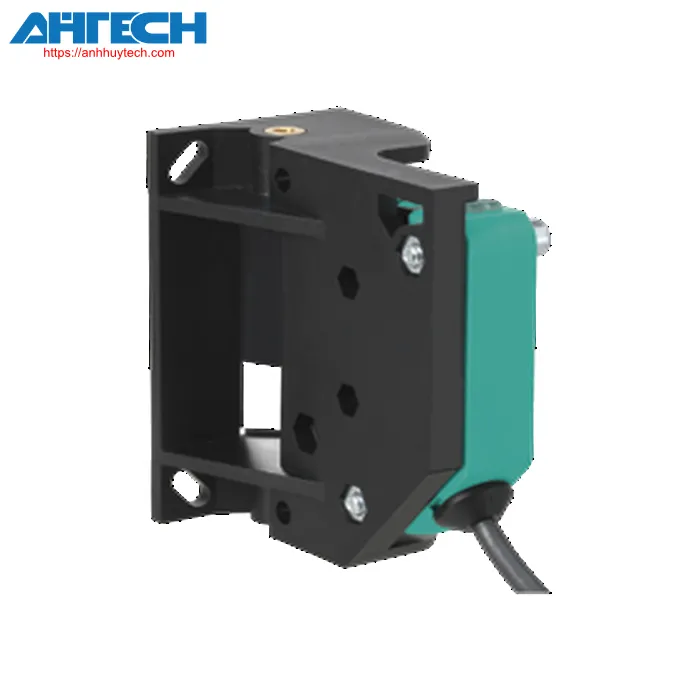

Photoelectric Sensor Pepperl+Fuchs OBT200-R201-E5F-Y0398-SET

Pepperl+Fuchs Categories

Photoelectric Sensor OBT200-R201-E5F-Y0398-SET

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of OBT200-R201-E5F-Y0398-SET

Classifications

Item Specification
Triangulation sensor featuring background elimination

Overall specifications
Detection distance		10 ... 650 mm preset on 200 ... mm
Minimum detection range		30 ... 100 mm
Maximum detection range		30 ... 650 mm
modification range		100 ... 650 mm
Reference point		typical white, 100 mm x 100 mm
illumination source		LED
Illumination type		modulated red light in the visible spectrum
LED risk category labeling		exemption category
Black-white contrast (6 %/90 %)		< 6 % at 650 mm
Size of the illumination spot		approximately 20 mm x 20 mm at a distance of 650 mm
angle of opening		approx. 2 °
Ambient light threshold		EN 60947-5-2 : 70000 Lux
Parameters related to functional safety
MTTF_d		600 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green: power activated; flashing (4 Hz) - short-circuit detected
operation indicator		Yellow indicator LED: activates when an object is detected; flashes (approx. 4 Hz) at Pollution
control components		Light-on/dark-on toggle switch
control components		detection range adjuster
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load input current		< 25 mA at 24 V supply voltage
Ingress protection rating		III
Output
Stability fault indication output		1 PNP, activated when the level drops below the functioning reserve after approximately 5 s Activated instantly if the beam is disrupted 4 times within the flashtime
Type of switch		The sensor features an adjustable switching type. The factory default setting is: Q - Pin4: PNP normally open / illuminated light Alarm output - Pin2: PNP normally open / light activated upon detection of contamination
Output signal		2 PNP outputs, short-circuit resistant, reverse polarity protection, surge protection
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA, resistive load
Usage category		DC-12 and DC-13
voltage loss		= 1.5 V DC
commutation frequency		200 Hz
reaction time		2.5 ms
Compliance
Product specification		EN 60947-5-2
Certifications and approvals
UL certification		E87056, cULus Certified, Class 2 power supply, type rating 1
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-40 ... 60 °C (-40 ... 140 °F), cable, stationary installation -20 ... 60 °C (-4 ... 140 °F), flexible cable unsuitable for use with conveyor chains
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67 / IP69 / IP69K
Linkage		300 mm stationary cable featuring an M12 x 1, 4-pin connector
Material
	Housing	PC (PC (polycarbonate)) Retainer PA 6 (Polyamide)
	optical surface	PMMA
Mass		approx. 95 g
Measurements
	Height	40 mm
	Width	76 mm
	Depth	71 mm
Cable duration		0.3 m
