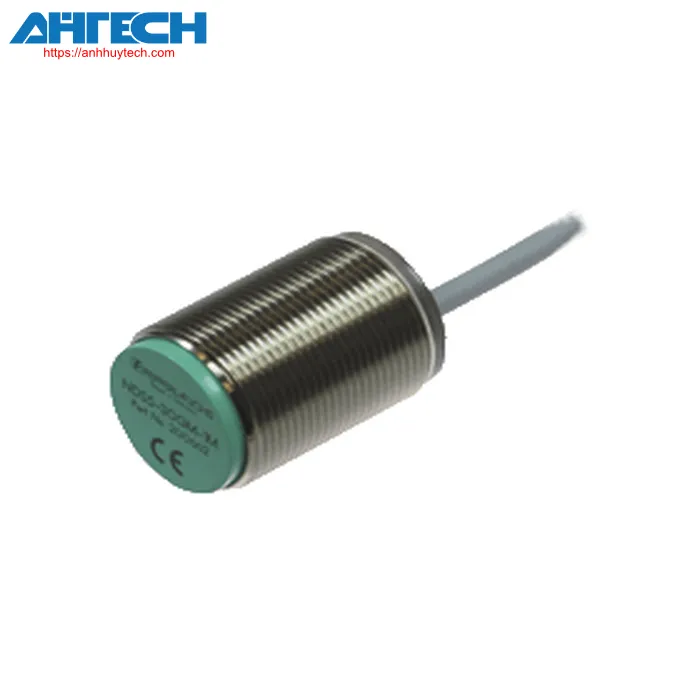

Sensor Accessory Pepperl+Fuchs NDS5-30GM-1M-V1

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Item Specification
Inductive transmitter system

Overall specifications
mounting		non-flush
Transfer distance		0 ... 5 mm
Output configuration		2-wire
Parameters related to functional safety
MTTF_d		37485 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Certifications and approvals
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		0 ... 50 °C (32 ... 122 °F)
Ambient storage temperature		-25 ... 85 °C (-13 ... 185 °F)
Mechanical characteristics
Housing material		brass with a nickel coating
detection surface		PBT
Protection等级		IP67
mounting		screw mounting
	Free zone	= 3 mm
	Spacing to metal walls	= Ø 50 mm
	Security zone	= 60 mm x 15 mm
Measurements
	Length	43 mm
	Diameter	30 mm
Overview information
Note		Maximum cable length between WIS module and WIS transmitter must not exceed 5 m.
