Inductive Sensor Ifm IF5750
IFM CATEGORIES

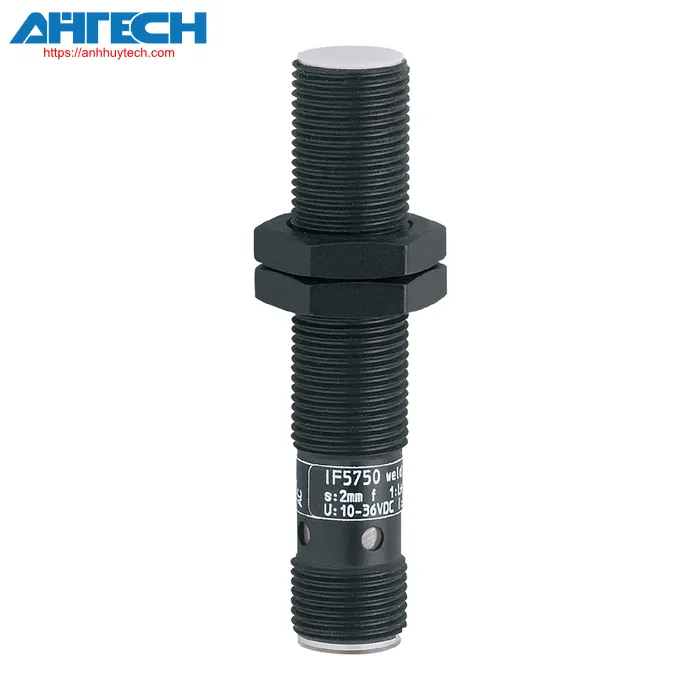

Inductive Sensor IF5750
Brand: Ifm
Product Code: IFK3002UBPKG/SC/US-104-DPS
- Resistant to magnetic fields for welding processes
- Extremely high switching frequency
- Durable metal enclosure designed for harsh industrial conditions
- Easily discernible indication of the switching status
Contact via Zalo
Phone call
Product characteristics
| Electrical engineering design | PNP |
| Output feature | typically open |
| Detection range[mm] | 2 |
| Housing | Screw-type |
| measurements[mm] | M12 x 1 / L = 60 |
| System | Immune to magnetic fields |
| Immune to magnetic fields | yes |
Mechanical data
| Weight[g] | 40 | ||
| Housing | Screw-type | ||
| Installation | recessed installation compatible | ||
| measurements[mm] | M12 x 1 / L = 60 | ||
| Thread specification | M12 x 1 | ||
| Substance | enclosure: brass with PTFE coating; sensing surface: PTFE | ||
| Display |
| ||
| Adjustment coefficient | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 | ||
| Hysteresis[% of Sr] | 1...15 | ||
| Setting-point drift[% of Sr] | -10...10 |
Outputs
| Electrical engineering design | PNP | |
| Output feature | typically open | |
| Max. voltage drop at switching output DC[V] | 2.5 | |
| Continuous current rating of the switching output DC[mA] | 250 | |
| DC switching frequency[Hz] | 1000 | |
| Overcurrent protection | yes | |
| Method of overcurrent protection | yes (momentary) | |
| Overcurrent protection | yes | |
| Voltage for operation[V] | 10...36 DC | |
| Current draw[mA] | 15; (24 V) | |
| Safety feature rating | II | |
| Reverse polarity safeguard | yes | |
| Detection range[mm] | 2 | |
| Actual sensing range Sr[mm] | 2 ± 10 % | |
| Operational range[mm] | 0...1.6 | |
| Surrounding temperature value[°C] | -25...70 | |
| Safety feature | IP 67 | |
| Items provided |
|
Download Specification for IF5750
