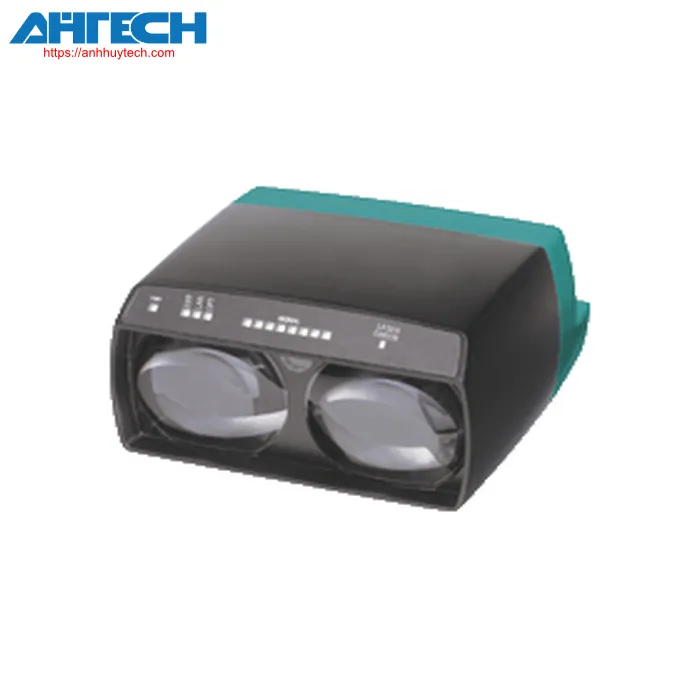

Photoelectric Sensor LS684-DA-EN-9003/F2/35/146
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of LS684-DA-EN-9003/F2/35/146
| Item Specification | ||
|---|---|---|
| Optical data connector for Rapid Ethernet with a 300 m detection range, red light, 100 Mbit/s data transmission rate, and M12 connector | ||
| Overall specifications | ||
|---|---|---|
| Operational sensing range | 0 ... 300 m | |
| detection range threshold | 320 m | |
| illumination source | laser diode | |
| Illumination type | modulated red light in the visible spectrum | |
| Laser specified ratings | ||
| Note | VISIBLE LASER RADIATION, AVOID DIRECT VIEWING WITH OPTICAL INSTRUMENTS | |
| Laser category | 1M | |
| Wavelength | 660 nm | |
| Beam spreading | 15 mrad | |
| pulse duration | 8 ns | |
| Repetition frequency | 62.5 MHz | |
| Maximum optical output power | 60 mW | |
| Size of the illumination spot | 1.5 m at a range of 100 m | |
| angle of opening | 1 ° | |
| Ambient light threshold | > 10000 Lux | |
| Parameters related to functional safety | ||
| MTTFd | 58.6 a | |
| task duration (TM) | 10 a | |
| Diagnostic Range (DC) | 0 % | |
| Indicators/operation controls | ||
| Data transfer indicator | LED green: OPTO-Link Yellow indicator LED: LAN-Link LED red: ERROR |
|
| operation indicator | Signal strength (8 LED: Red, yellow, green) | |
| Electrical parameters | ||
| Operational voltage | 18 ... 30 V DC | |
| No-load input current | 200 mA | |
| Data transmission rate | 100 MBit/s (Rapid Ethernet) | |
| Connection point | ||
| Type of interface | 100 BASE-TX | |
| Output | ||
| Stability fault indication output | 1 PNP, disabled when functioning reserve is insufficient, short-circuit protected, maximum current of 200 mA | |
| Compliance | ||
| Laser safety | EN 60825-1:2007 | |
| Certifications and approvals | ||
| UL certification | cULus Certified | |
| FDA certification | IEC 60825-1:2007 conforms with 21 CFR 1040.10 and 1040.11, excluding deviations as stated in Laser Notice No. 50, dated June 24, 2007 | |
| Environmental conditions | ||
| Ambient temperature | -30 ... 50 °C (-22 ... 122 °F) | |
| Ambient storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP65 | |
| Material | ||
| Housing | ABS / PC | |
| optical surface | plastic | |
| Mass | 700 g | |
| Measurements | ||
| Height | 90 mm | |
| Width | 170 mm | |
| Length | 171 mm | |
